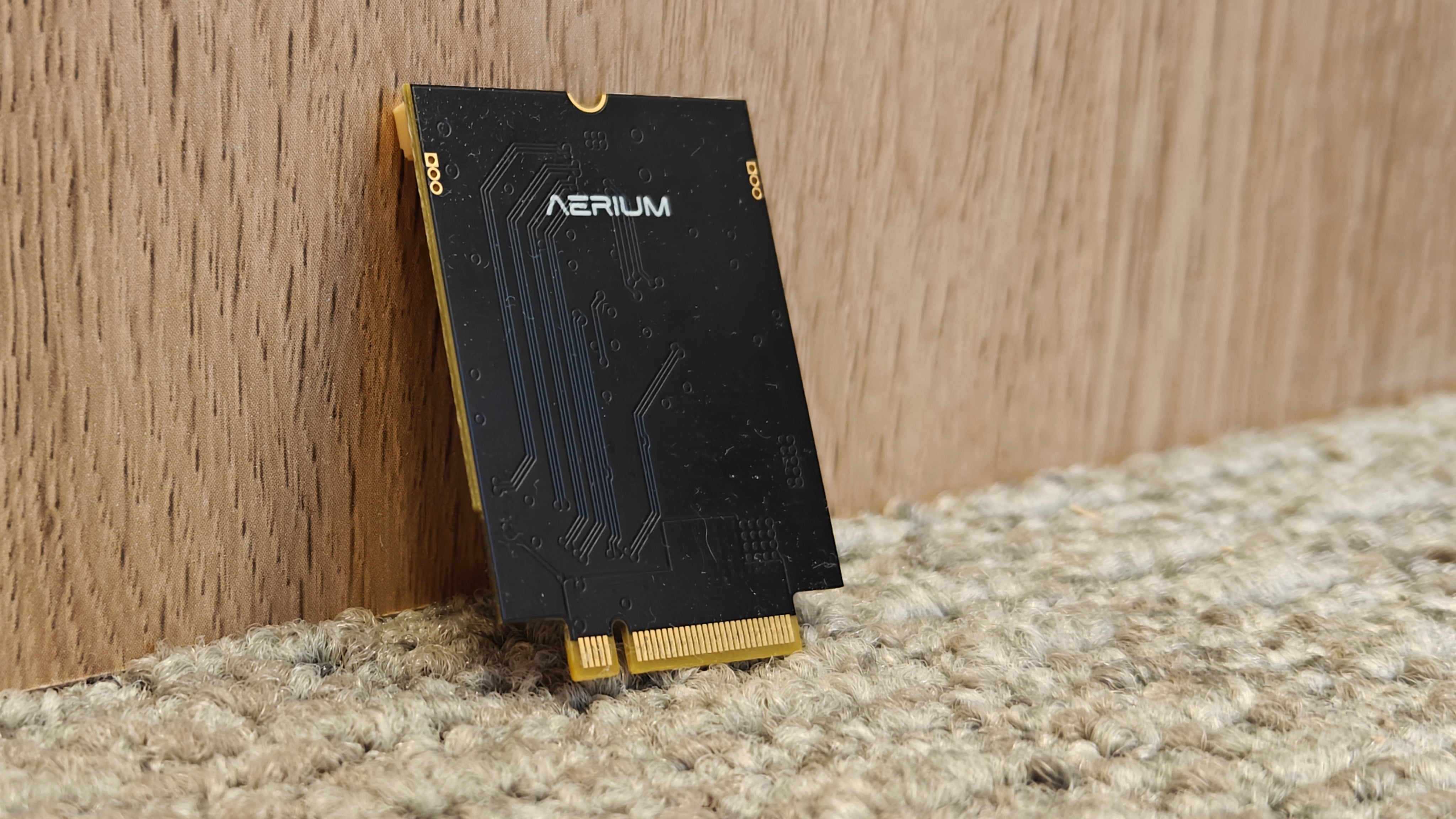

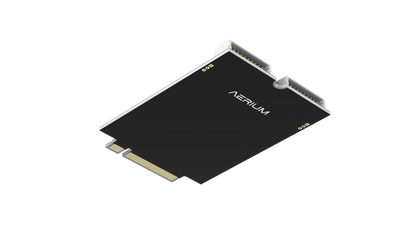

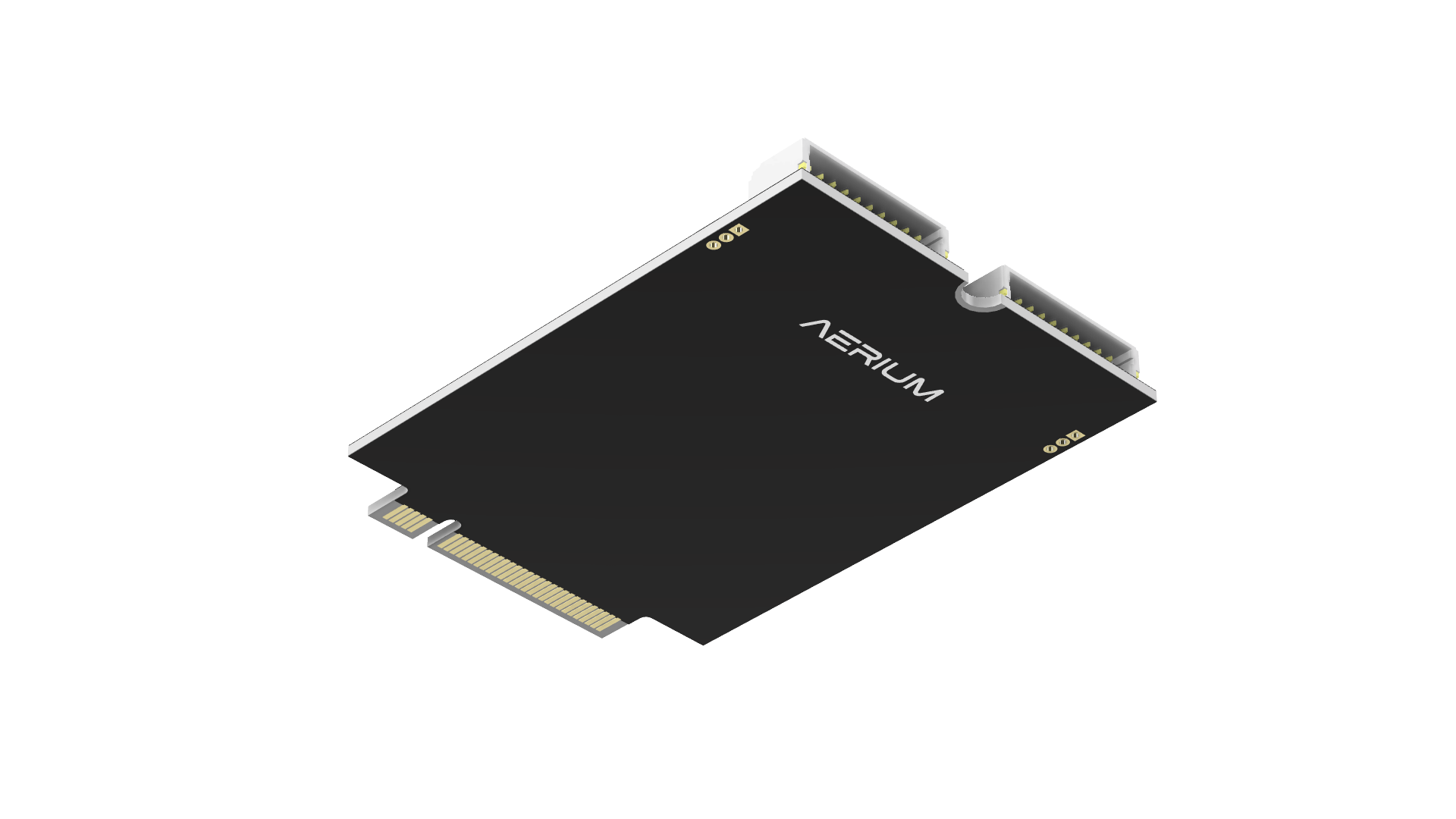

Logix - M.2 Key B UART, GPIO & USB expansion module
Introducing Aerium Logix, a compact M.2 Key-B expansion module designed to extend I/O connectivity for embedded systems.

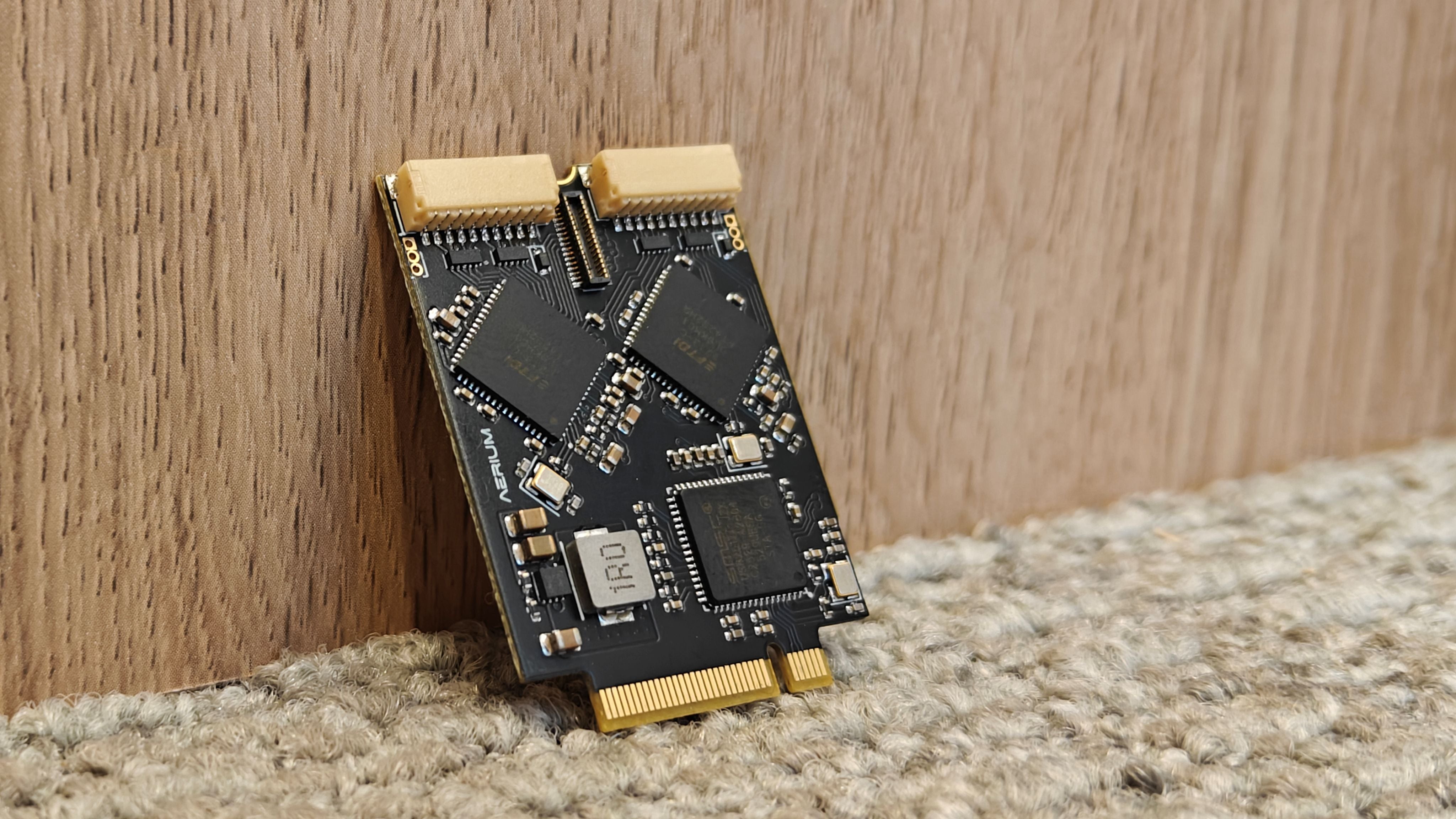

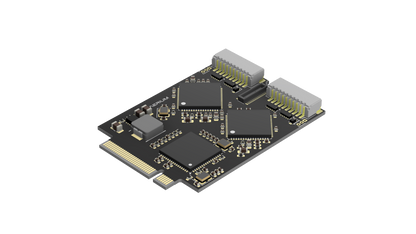

Powered by dual FT4232H interface controllers and a Microchip USB2517 high-speed USB hub, Aerium Logix delivers a powerful combination of 4 UARTs, 4 USB ports, and 16 GPIO channels in a single 30 × 42 mm (M.2 3042) module.
One FT4232H is dedicated to UART-to-USB conversion, while the second handles GPIO and MPSSE control, providing flexible serial and digital interfacing options. The integrated USB2517 7-port hub connects both controllers and enables external USB device expansion, ensuring seamless integration and high reliability.
Specifications
Input Voltage
Weight
Form Factor
Dimensions
Logix - M.2 Key B UART, GPIO & USB expansion module
Expanded Interface Capability
Built around dual FT4232H controllers and a Microchip USB2517 hub, Aerium Logix provides a powerful combination of 4 UARTs, 4 USB 2.0 ports, and 16 GPIO channels. This allows embedded developers to add serial, USB, and digital I/O expansion through a single M.2 Key-B interface, ensuring fast communication and flexible integration in compact systems.
Plug-and-Play Compatibility
Designed for rapid integration, Aerium Logix operates as a fully plug-and-play module. All UART, GPIO, and USB functions are automatically enumerated via standard USB drivers, making it easy to connect, configure, and deploy without custom firmware or setup tools.
