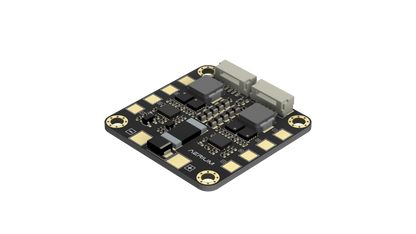

Joule - 14S Compact PDB
AE-LACRV

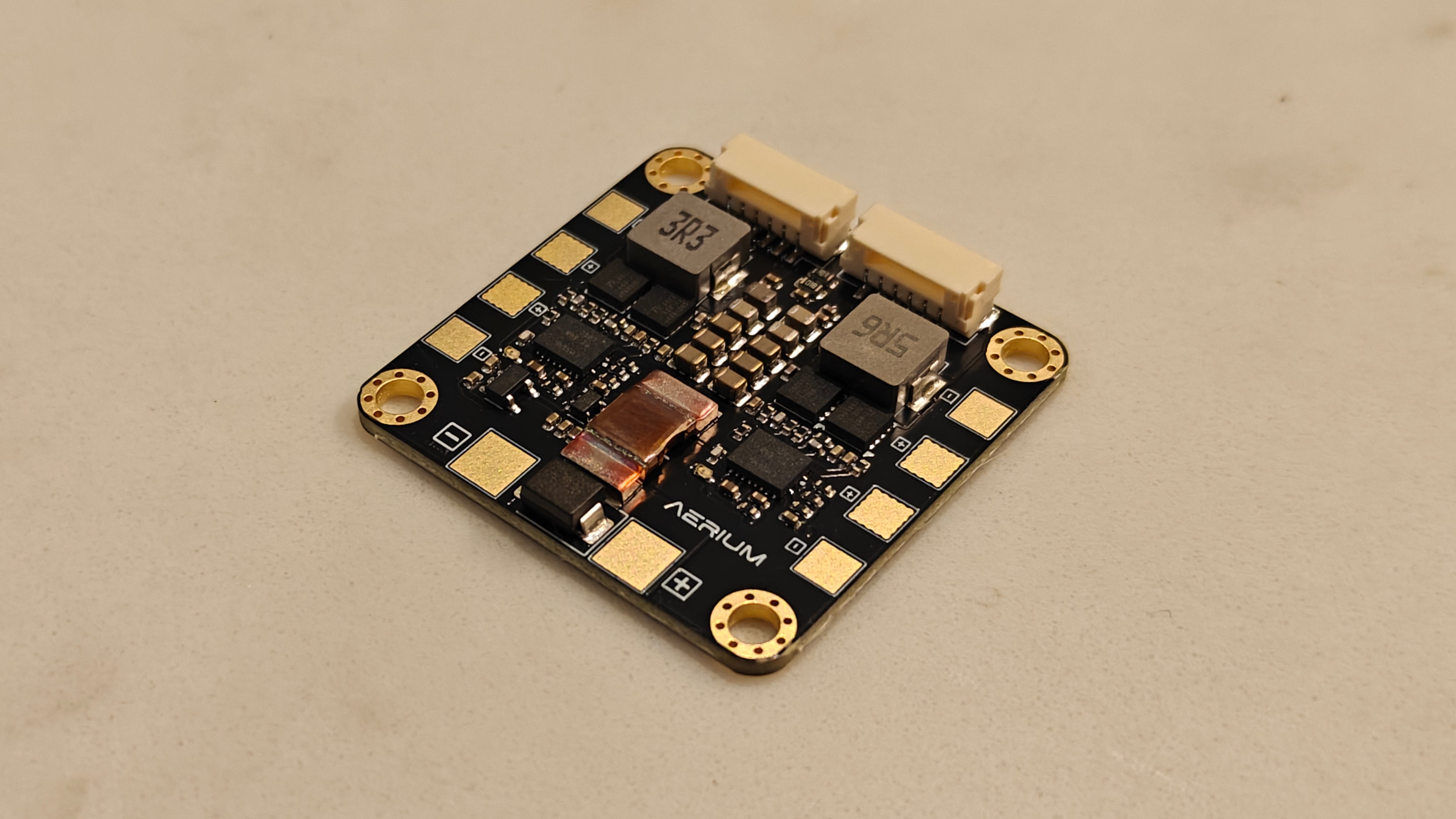

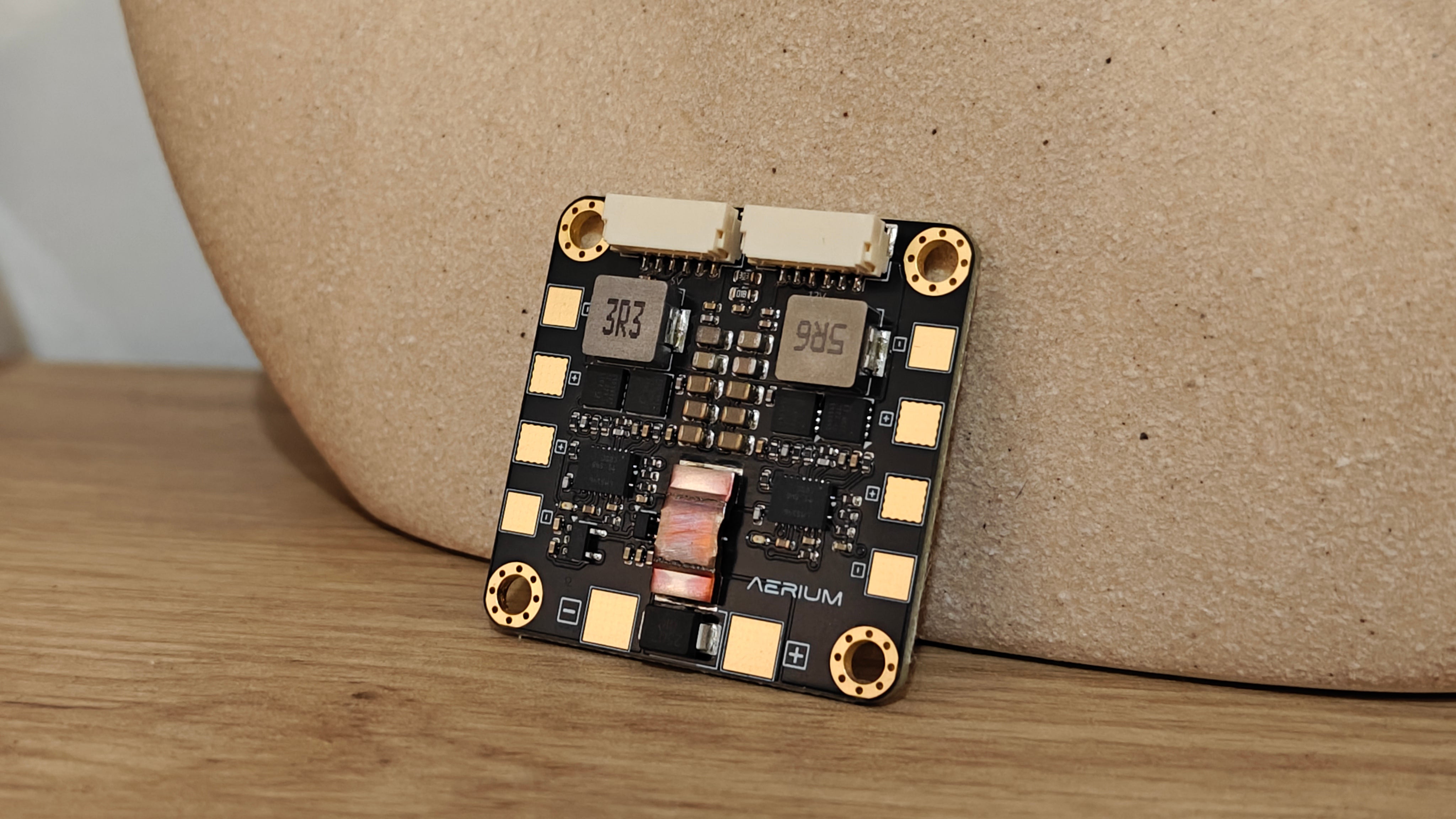

Joule is a high-current power distribution board (PDB) engineered for compact, space-constrained autonomous and embedded systems. Designed to deliver a high ratio of capabilities per millimeter, Joule consolidates power distribution, voltage regulation, and real-time monitoring into a single, compact platform. Supporting a wide 3S-14S LiPo input range (10-60 V), it integrates regulated 5 V / 3 A and 12 V / 3 A outputs suitable for compute modules, sensors, communication systems, and control electronics. Built-in voltage and current sensing enable accurate telemetry and power diagnostics, improving system visibility and reliability. Joule reduces integration overhead, wiring complexity, and board stacking requirements, providing a low-swap, high-functionality power architecture without compromising performance.
Specifications
Max Current
Mounting Holes
Dimensions
Weight
Power Input
Joule - 14S Compact PDB
Integrated Power Monitoring
Onboard voltage and current sensing provide real-time telemetry and diagnostic capability. This enables accurate power budgeting, fault detection, and operational reliability, eliminating the need for additional external sensing hardware.
Dual-Sided Power Distribution
With support for 3S-14S LiPo batteries (10-60 V), Joule enables flexible deployment across diverse system configurations. Integrated 5 V / 3 A and 12 V / 3 A buck regulators ensure stable, low-noise power delivery for sensitive electronics and compute platforms.
Flexible Integration

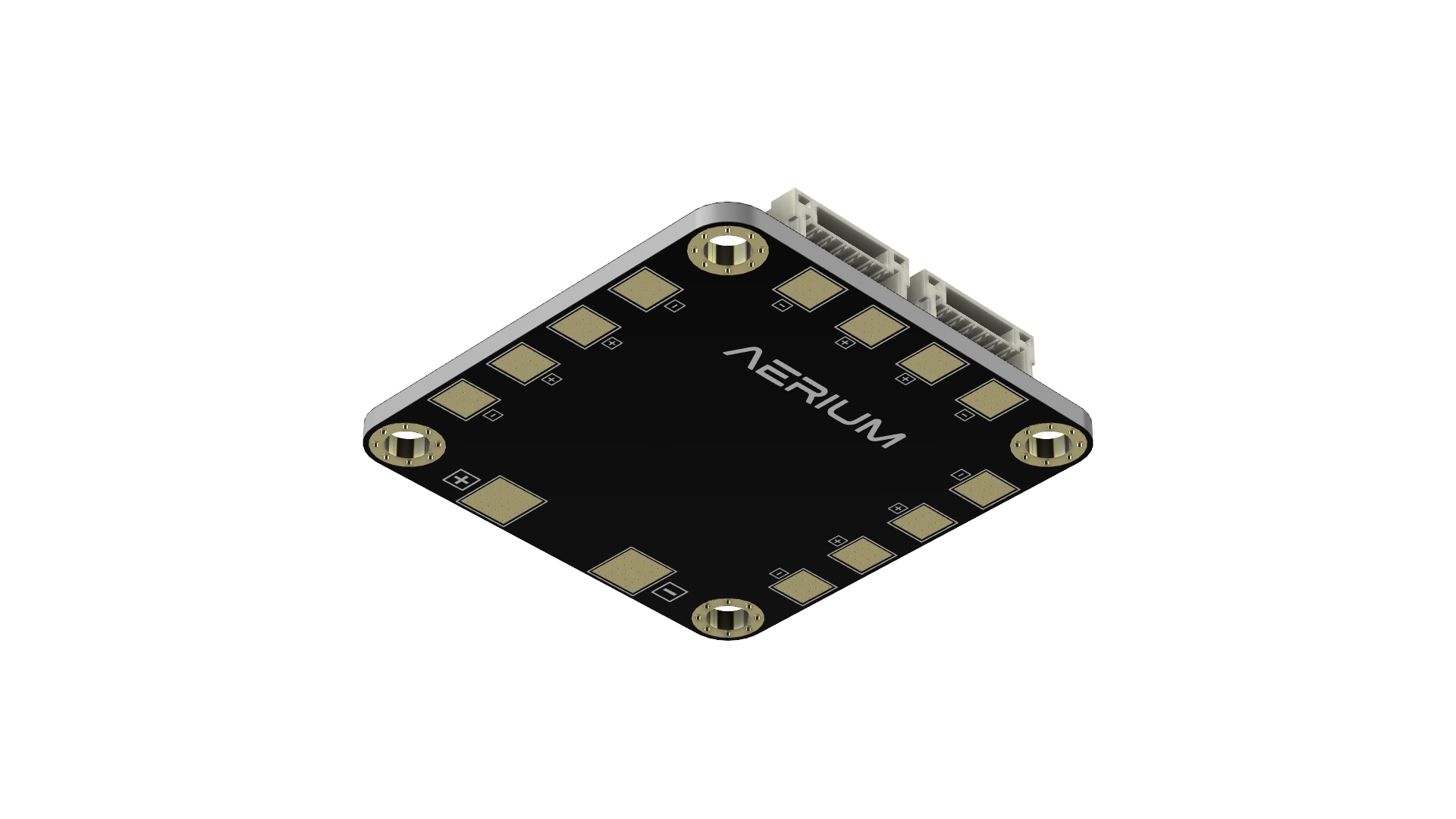

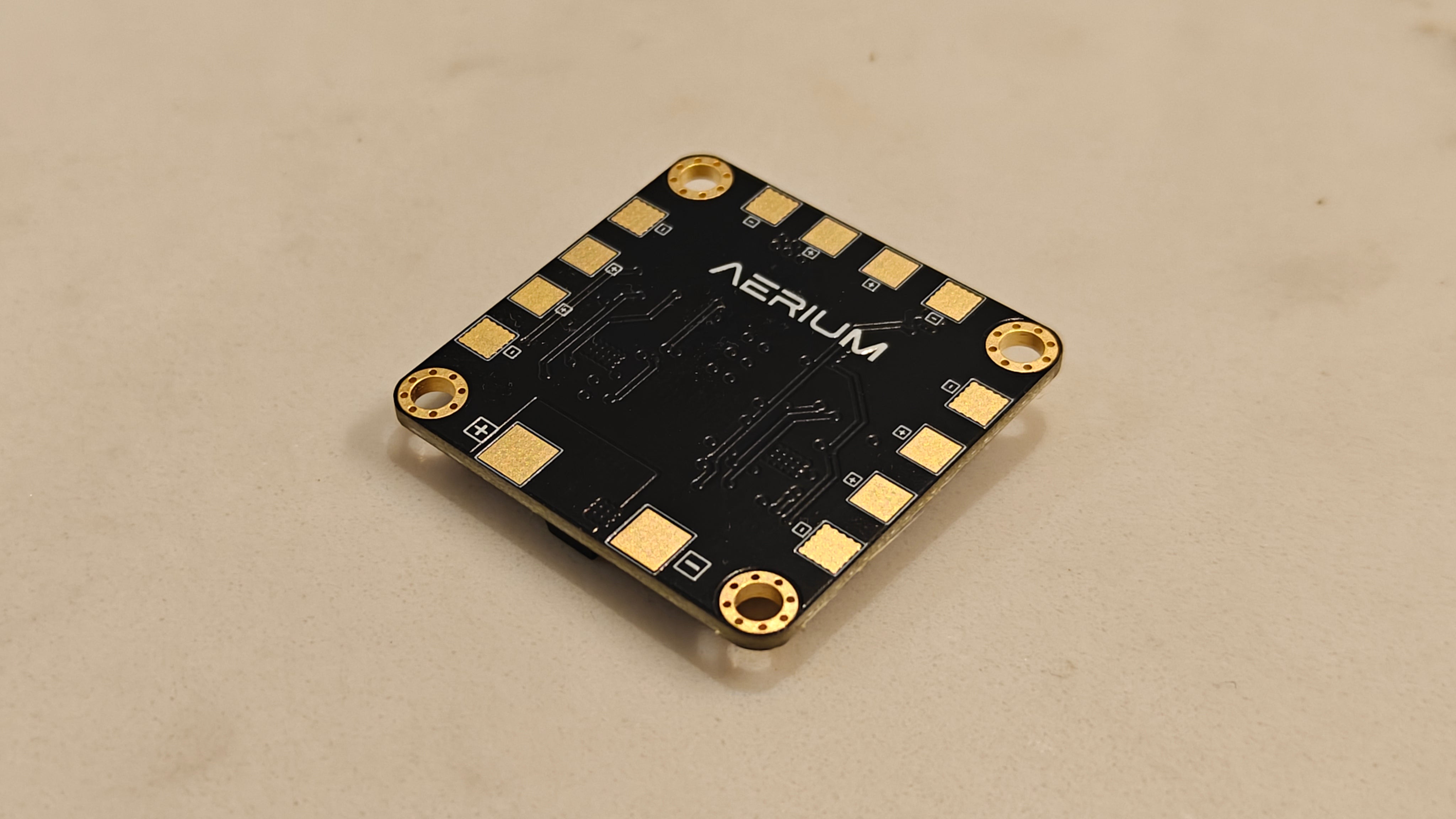

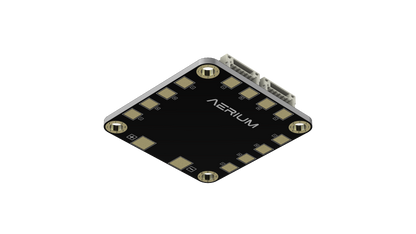

Bottom-side power pads that enable true dual-sided power distribution. This allows designers to route high-current paths on both the top and bottom layers, improving layout flexibility and simplifying wiring in compact assemblies. The result is cleaner integration, better space utilization, and more efficient current handling in space-constrained systems.
