Connexa - M.2 Key A/E USB2.0 Hub
Introducing Aerium Connexa – a versatile USB 2.0 hub module designed to expand connectivity in compact embedded systems.
Built around the Microchip USB2514B controller, Aerium Connexa provides four downstream USB 2.0 ports through a high-speed, low-latency hub architecture. Its M.2 Key A/E interface allows for easy integration into space-constrained applications, making it ideal for adding USB peripheral support to SBCs, wireless modules, and other modular platforms. Whether you're designing UAVs, edge computing devices, or industrial controllers, Aerium Connexa offers a reliable, plug-and-play solution for extending USB connectivity with minimal footprint.
Quick Processing
Trusted Delivery
Secure payment
Specifications
Connector
Input Voltage
Weight
Dimensions
Connexa - M.2 Key A/E USB2.0 Hub
Seamless USB Expansion
Equipped with the Microchip USB2514B controller, Connexa delivers four reliable USB 2.0 downstream ports. It allows you to connect multiple peripherals like cameras, GPS modules, or telemetry radios, all through a single M.2 interface, with minimal latency and maximum stability.

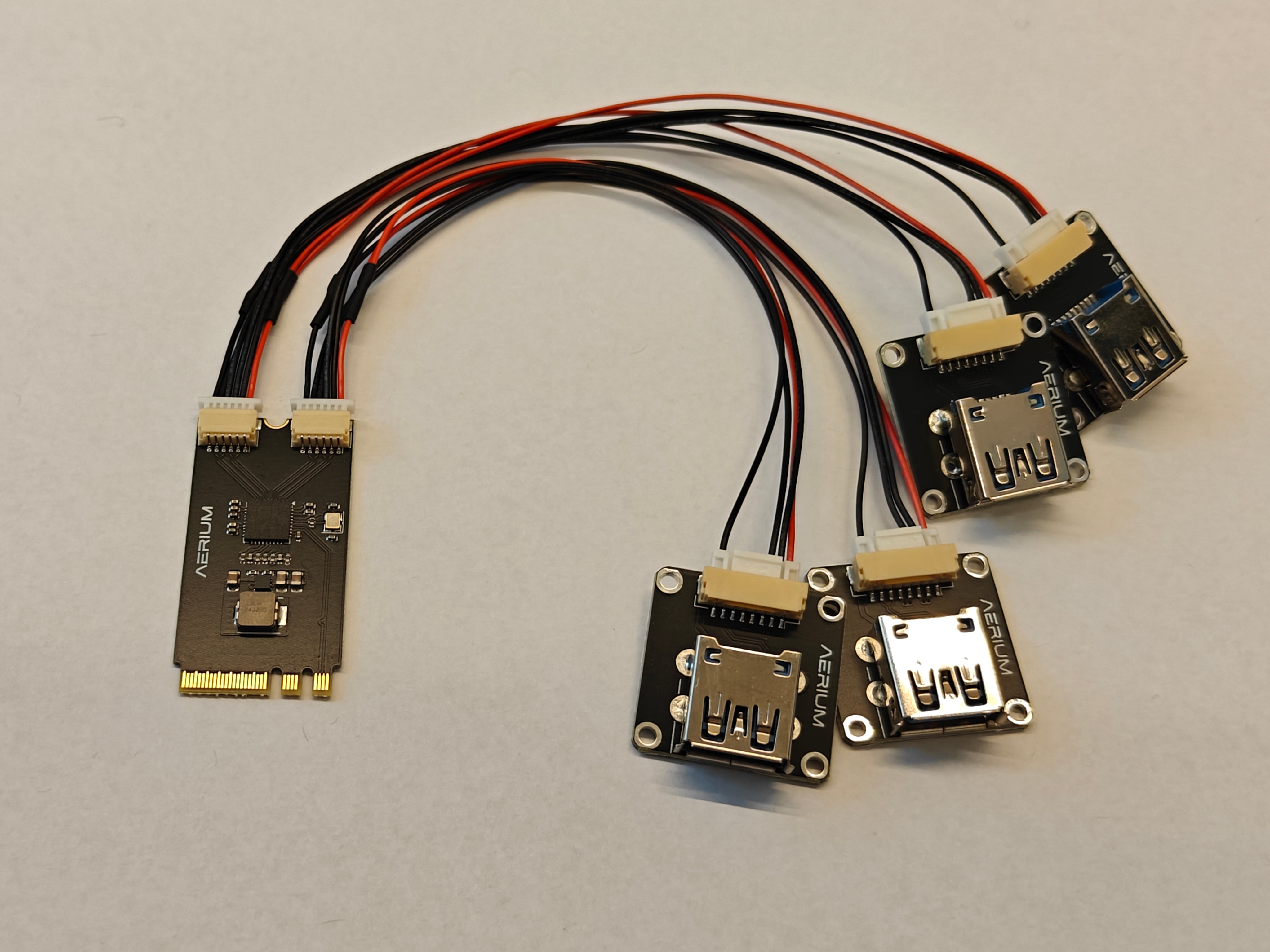

Plug and Play Cable Kit
Connexa comes with an optional Plug-and-Play Cable Kit, making integration even easier. The kit includes pre-terminated cables designed to match the hub’s connectors, so you can power up and connect devices without custom wiring or soldering. Quick to install, reliable in operation, and ready to drop into your build.
Product details
Key Features
- 4× USB 2.0 downstream ports via Microchip USB2514B controller, robust plug‑and‑play solution
- M.2 Key A/E (M.2 2242) interface perfectly suited for modular placement in various systems.
- Compact and Lightweight: Designed for minimal impact on your UAV’s weight and form factor, making it suitable for various UAV configurations.
- High-Speed USB 2.0 Data Transfer: Supports full USB 2.0 speeds of up to 480 Mbps, enabling fast and stable communication with connected peripherals. Whether you're streaming sensor data, interfacing with cameras, or syncing with GPS modules, you get reliable throughput ideal for real-time embedded applications.
Specifications
- Form Factor: M2 Key A/E
- Dimensions: 22 X 42 mm
- Weight: 5 g
- Input Voltage: 3.3V
Included in the Box
1x Aerium Connexa Unit
2x USB cables (2 ports on each)
