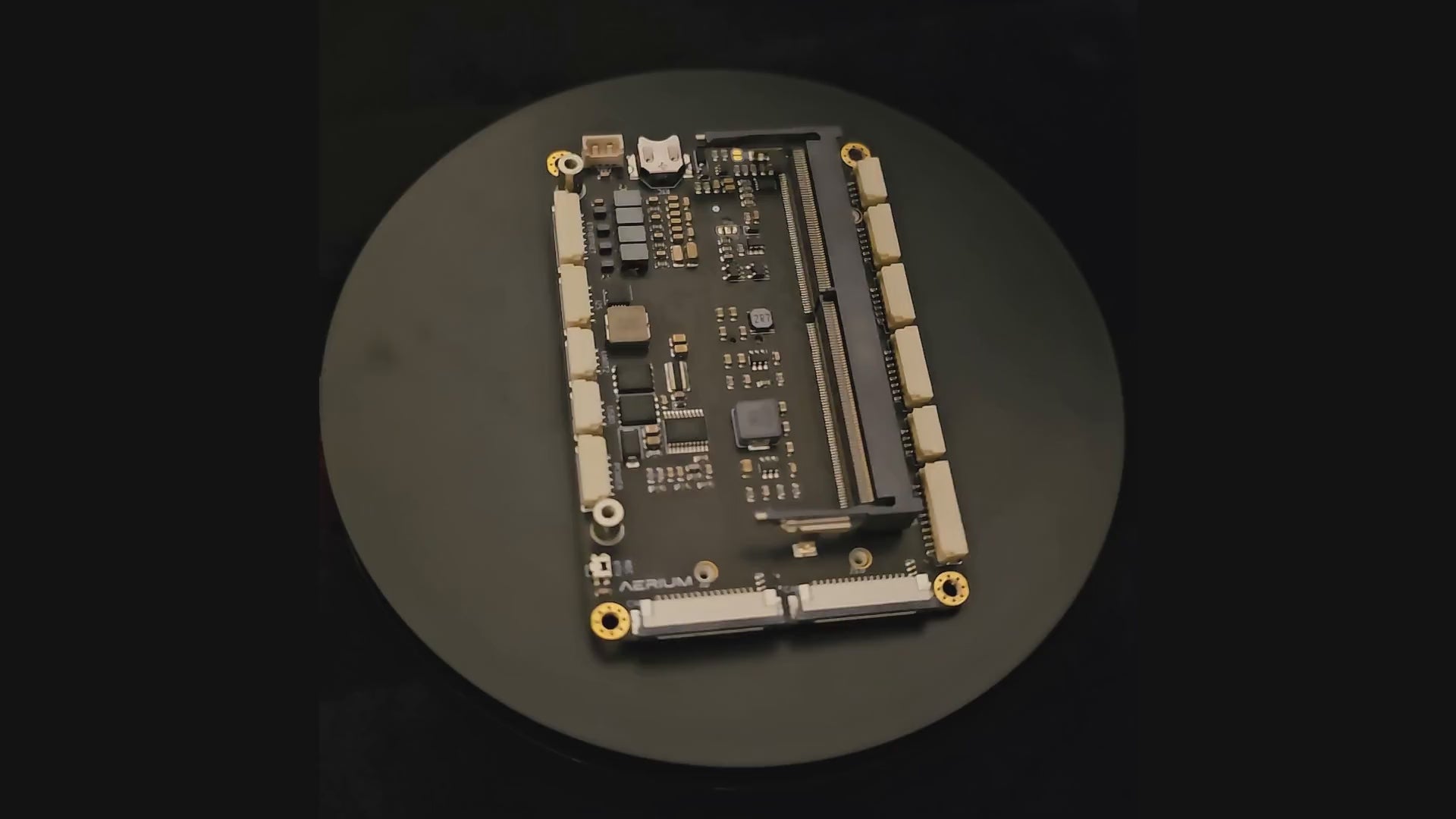

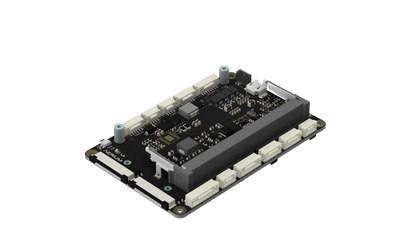

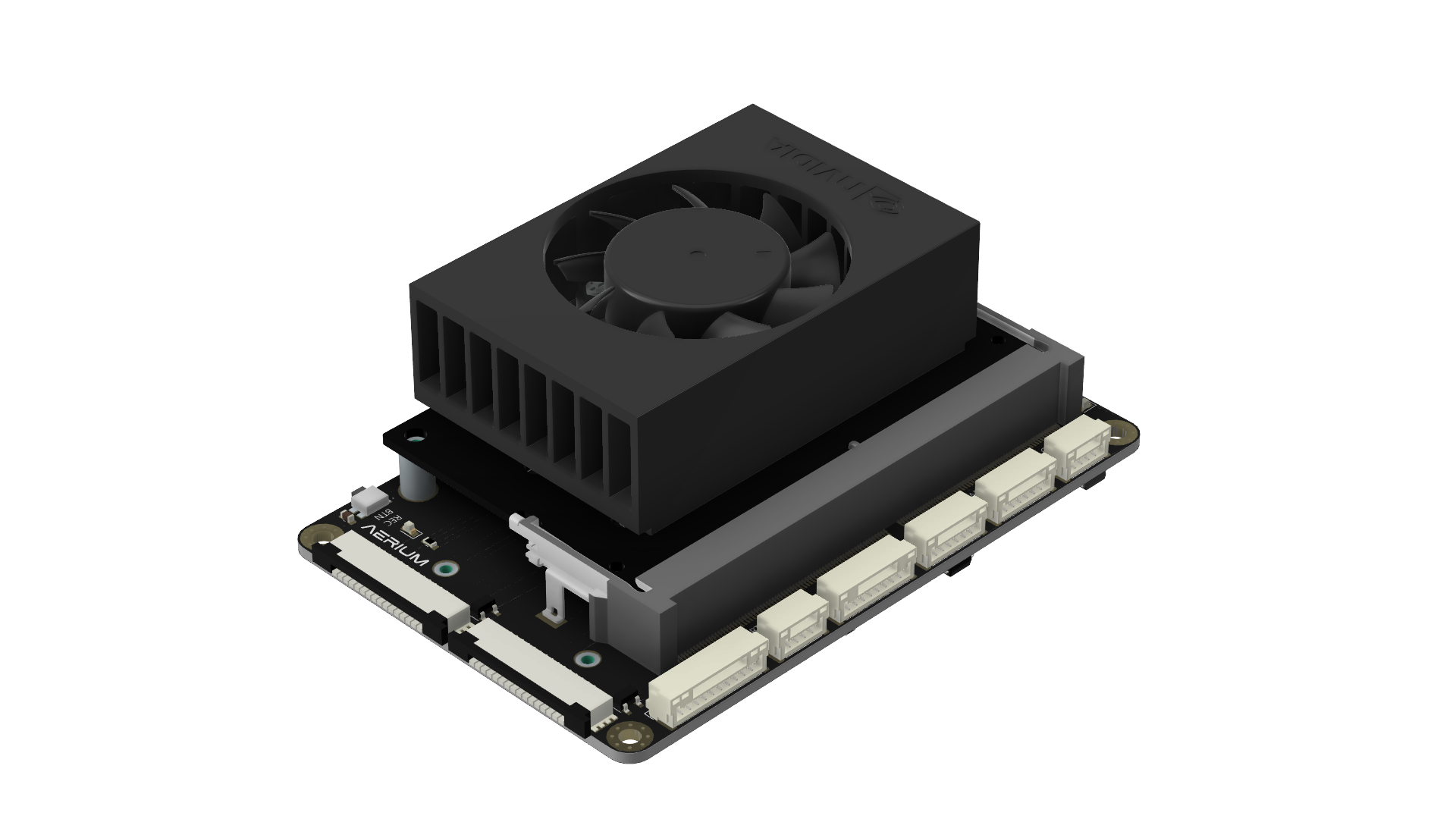

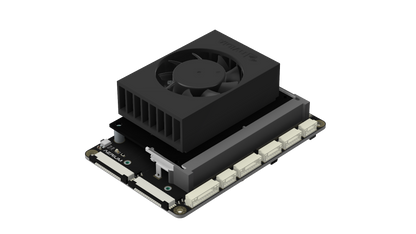

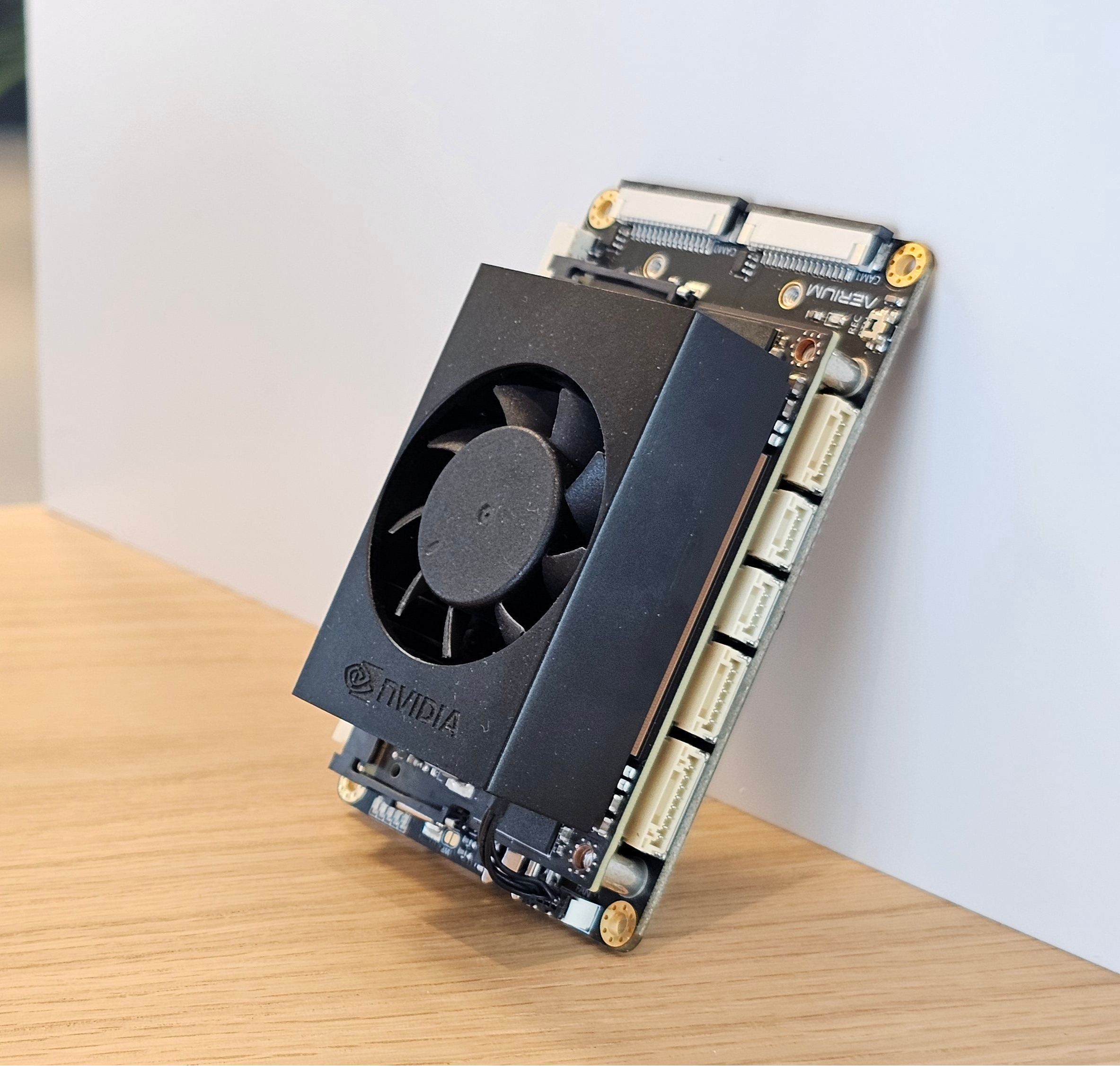

Lumen - NVIDIA Jetson Carrier Board
High-Performance AI at the Edge
The Aerium Lumen is a compact yet powerful carrier board designed to harness the full potential of NVIDIA Jetson modules. Whether you're developing autonomous drones, robotics, or smart vision systems, Lumen delivers the high-speed processing and reliable connectivity needed for real-time AI applications.
Developer-Friendly Design
The Lumen's thoughtful layout and robust construction make it ideal for rapid prototyping and deployment. Its support for various peripherals and expansion options enables developers to customize their setups easily, accelerating the development cycle for AI-powered projects.
Built for Expansion and Flexibility

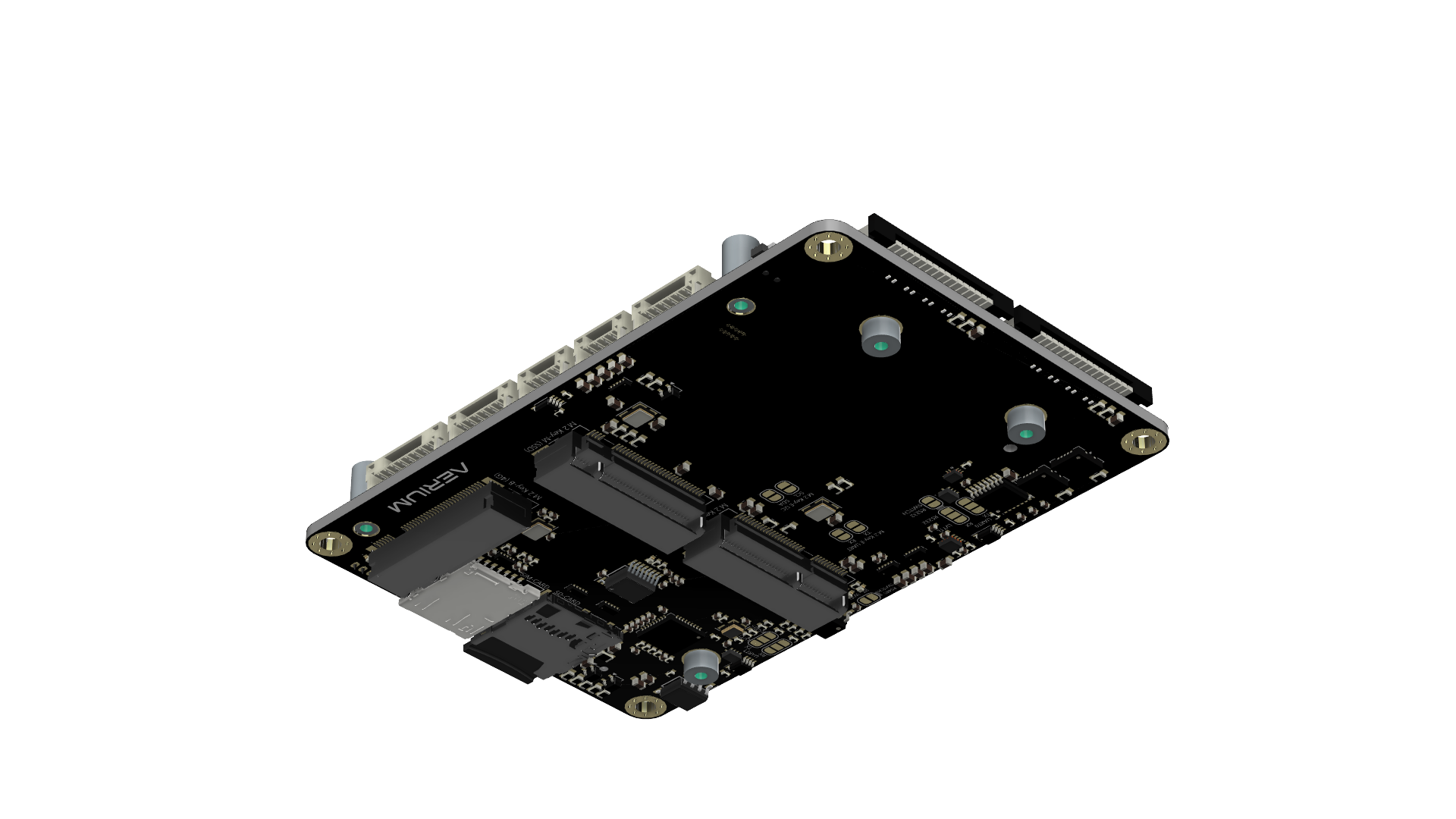

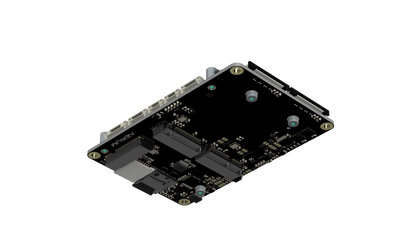

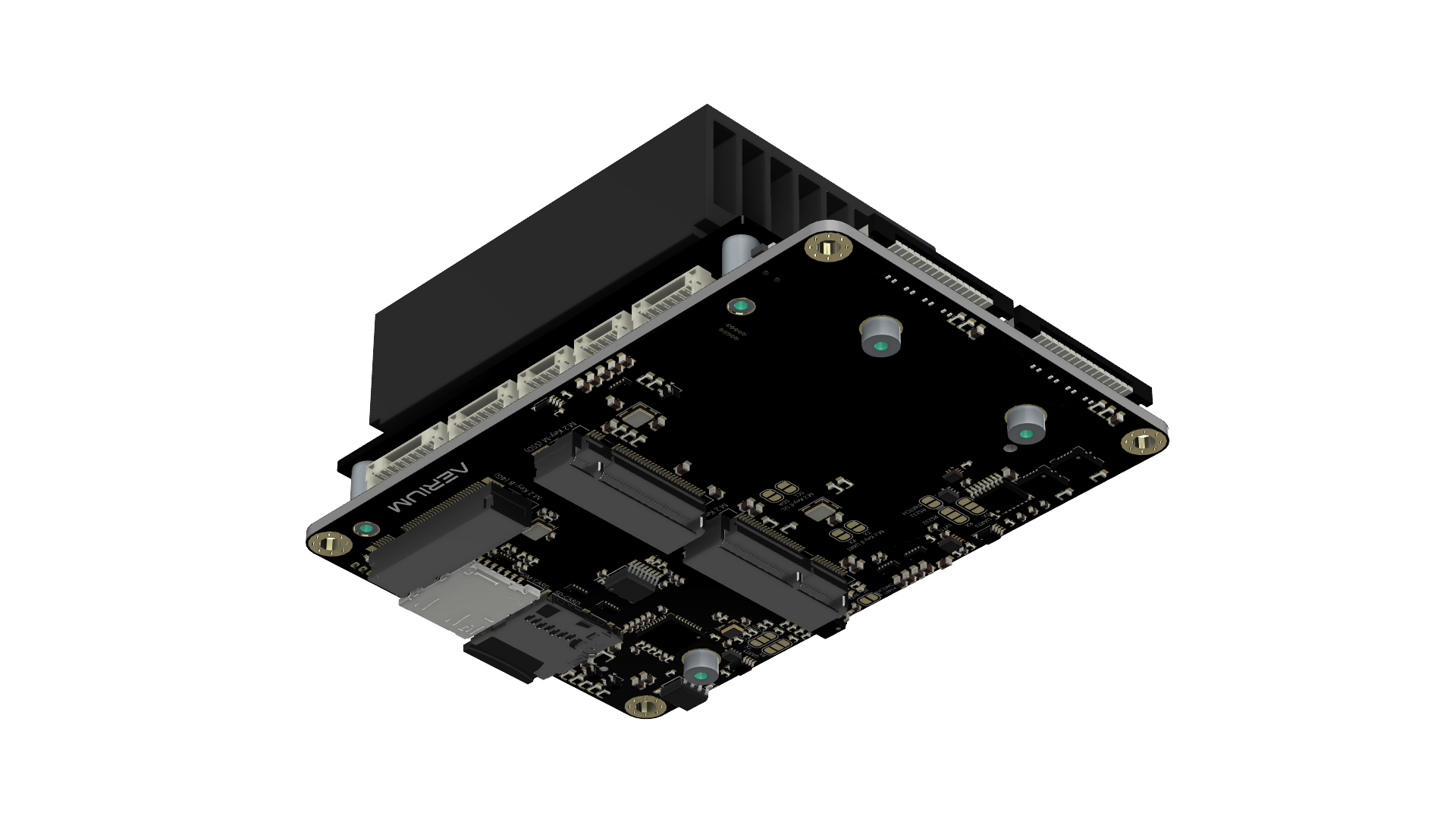

The Aerium Lumen is built to support complex edge applications with its triple M.2 interface, offering unmatched versatility. It includes an M.2 Key M slot for high-speed SSD storage, an M.2 Key E slot for Wi-Fi or AI accelerator modules, and an M.2 Key B slot for LTE or 5G connectivity. This combination empowers developers to customize their setup with the right mix of performance, connectivity, and compute power—all on a compact, robust platform.
Product details
Key Features
- Broad Compatibility - Supports NVIDIA Jetson Nano™, Orin™ NX, Orin™ Nano, Xavier™ NX, and TX2™ NX.
- Extensive Connectivity - 2x MIPI CSI camera interfaces
3x USB ports (including OTG)
Ethernet with built-in 5-port switch
Multiple UART, I2C, SPI, CAN, and I2S interfaces - Expansion Ready - M.2 Key-B for NVMe SSD and 4G LTE modules
M.2 Key-E for Wi-Fi/Bluetooth modules
Nano SIM slot for cellular connectivity - Flexible Power Input - Accepts 8V to 36V input
Compatible with various power sources - Compact Design - Dimensions: 89.5 x 59 mm
Lightweight: 40g (excluding Jetson module)
Specifications
- Mounting Holes: M2.5 (53 X 83.5 mm)
- Dimensions: 59 X 89.5 mm
- Weight: 40 g
- Input Voltage: 8-32 V
Product Manual
Product Brief
Included in the Box
1x Aerium Lumen Unit
1x Cable Kit
